Name: Robo Arm Mount Bases
SKU: 234088

There are a variety of Robo arm mount bases available to accommodate many different situations and needs.

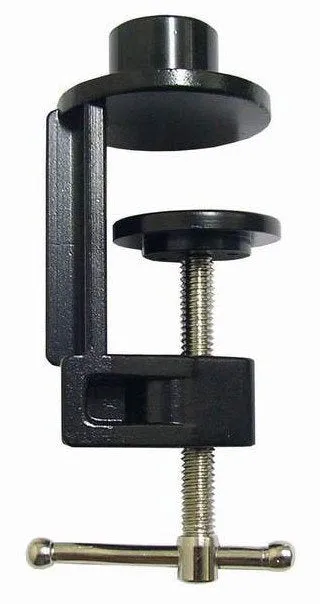

Robo Arm Table Clamp Base

Clamps to things as thick as 2"
Cork padding to prevent surface damage
Use to hold QuadMouse on Desk Edge
Casted aluminum design

This is a C-clamp stlye bracket for Robo Arm laptop and photography mounts. Perfect for mounting to quick temporary places, such as your office chair or table. Great for holding lcd monitors on your desk using an Robo arm mount and the VESA LCD bracket accessory. Not designed to be over tightened. Only use on idealy shaped and solid places. Misuse or overtightening can lead to damage of C-Clamp.

*Caution should be taken not to overtighten the clamp or over extend a heavy object at too great an extension and/or angle. Doing this can lead to breaking the clamp.

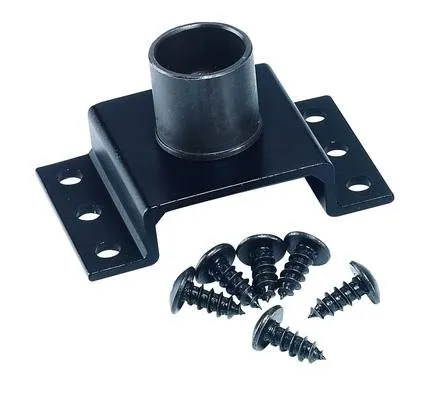

2. Robo Arm Surface Mount Base

Ideal for Table, Floor, Wall, or even your Van *Base and screws made by steel, bracket made by aluminum. *6 pcs screw include. *Color: black.

3. Robo Arm Replacement Base to Shoulder Section

Circular Cylindrical Base to geared shoulder joint.

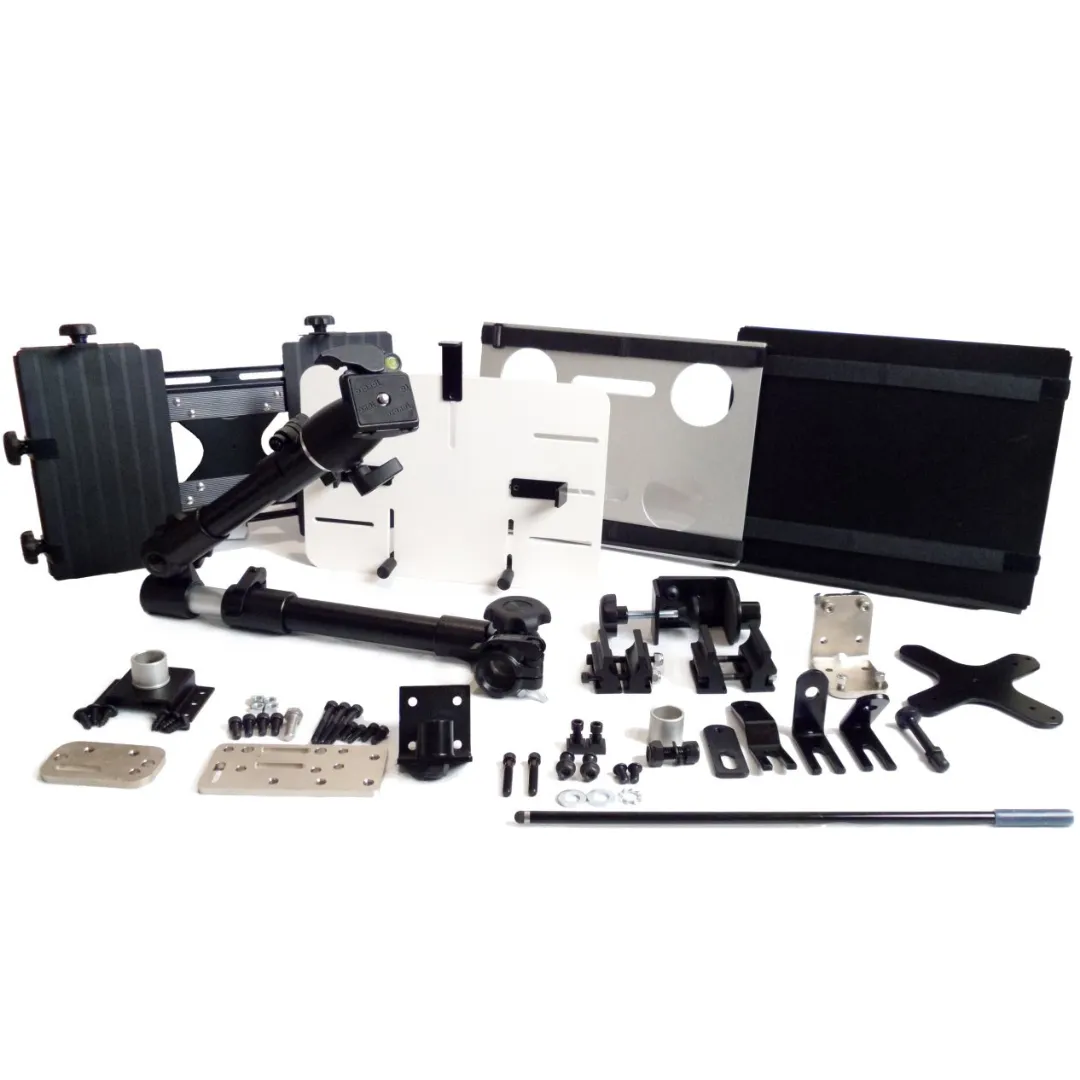

4. Robo Arm Mount Kit for Wheelchair or Bed

Features:

Quickly removable with the flip of a lever and less than 5 seconds!
ZERO WIDTH Does not add any with to wheelchair! Extends only 1 3/8" from wheelchair seat frame (less than wheelchair wheels)
Adjustability in length, angle, rotation, and more for perfect positioning (also accommodates users who sit declined in wheelchair)
SIMPLE - includes everything for mounting on 98% of wheelchairs, bed frame, or both
STYLISH - compact smooth lines

Perfect for Mounting and Positioning:

iPad and Android Tablets
Netbooks
Laptops (15" Max when arms are extended)
Reading/Studying, Eating, and other activities of daily living
Use with Broadened Horizons' QuadMouse and Mouth/Chin Accessible Video Game Controllers
Best mount available for photography!
Anything that can attach to a standard tripod (1/4-20 thread)

Rated for up to 6-8 pounds depending on how far arms are extended.

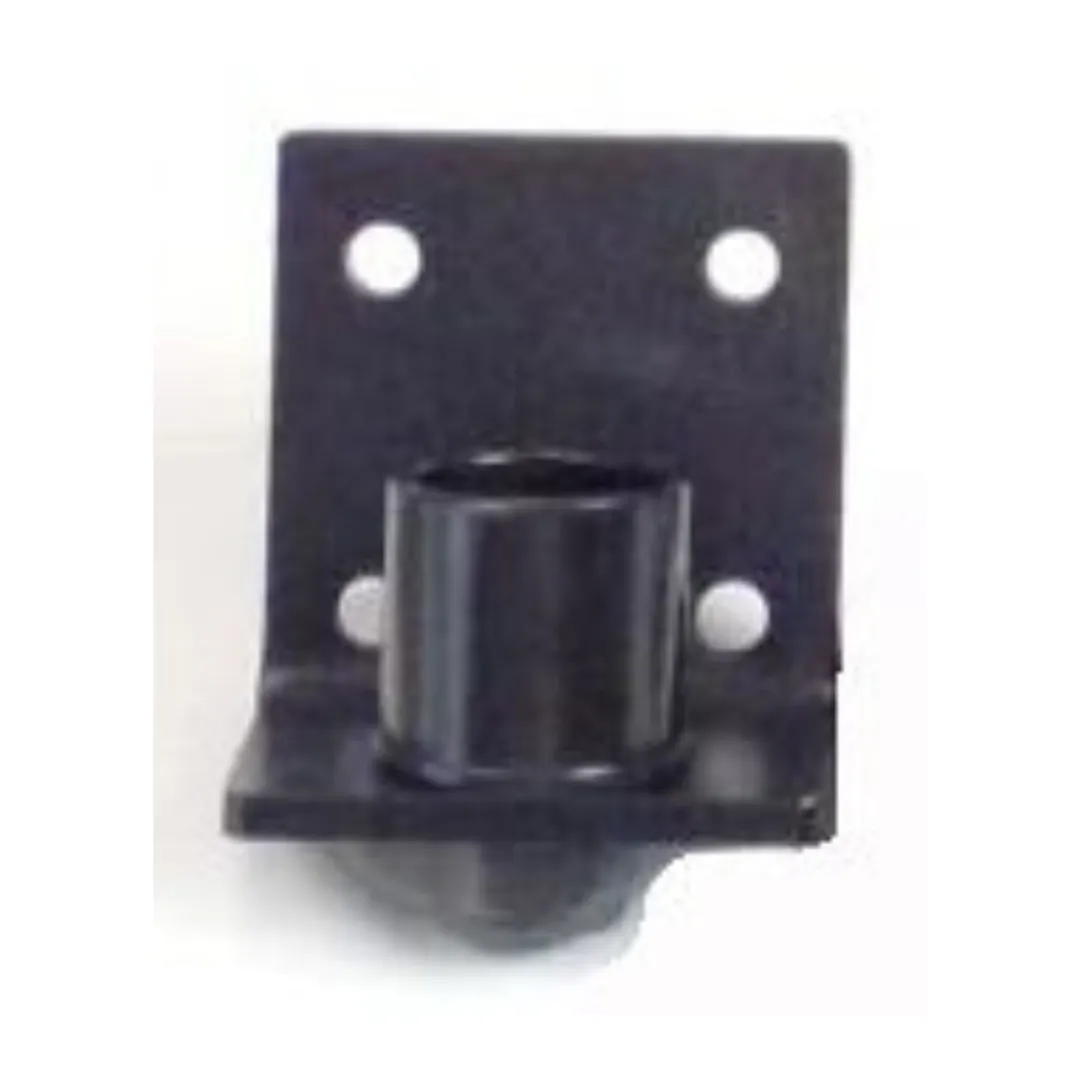

5. Robo Arm L-Bracket Base - bolts to Wheelchair Seat or Bed Frame

Bolts to wheelchair seat frame or bed frame. 1 base included with every Robo Arm Mount, add a 2nd base for your bed or a second wheelchair.

Six positions/methods of orientation possible!

"L" as pictured
"" upside down (knob flips sides)
"" with knob facing right
"" with knob facing left
"" with knob facing right
"" with knob facing left

Used independently or bolted to Universal Wheelchair Mounting Bracket or T-Nuts included with Robo Arm Mount.

Can be used with WC-LAE L-Bracket Extension for Wheelchair Frame Fixed Angle Bracket to move outward from wheelchair seat frame or work around something else mounted to the wheelchair seat frame.

Bundle Includes

(1) Black Powder Coated Custom Machined Steel 90° Bracket
(1)

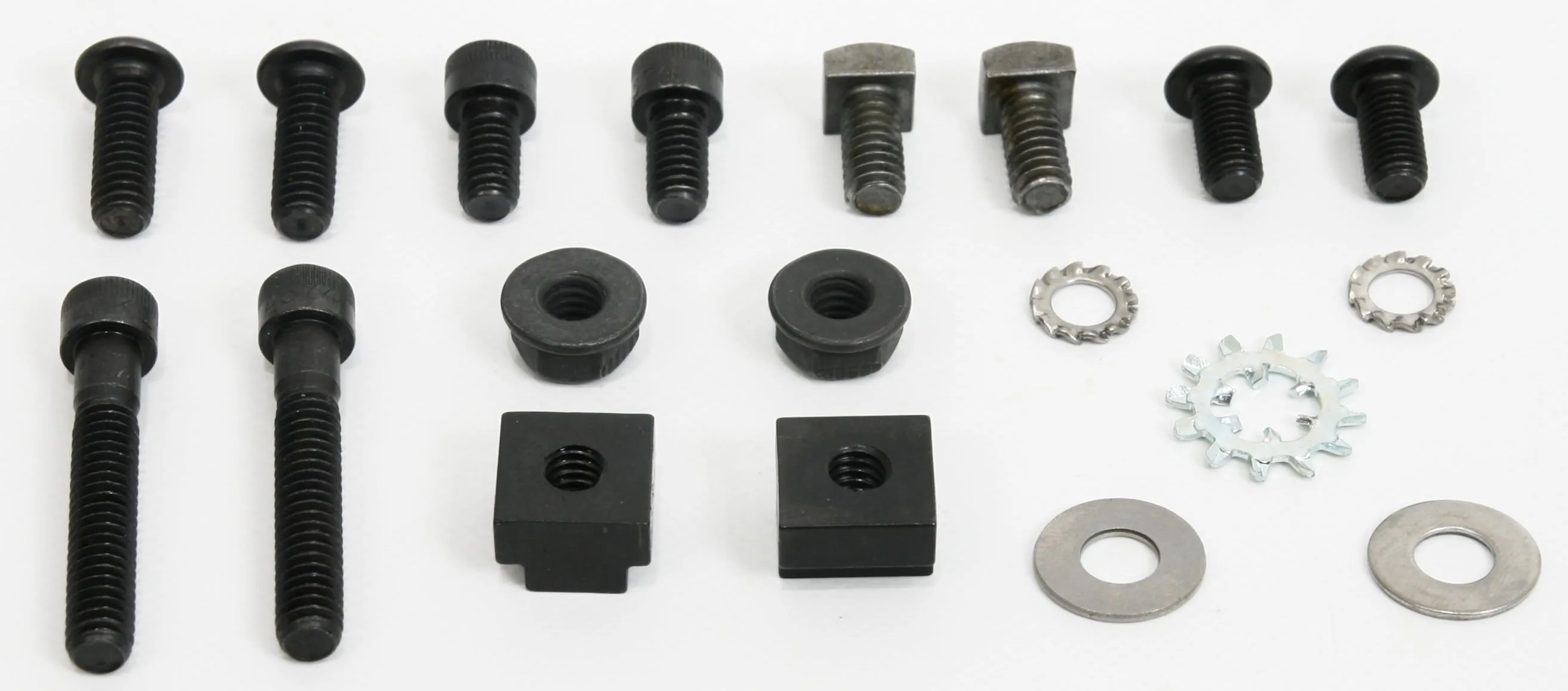

6. Robo Arm Hardware Kit for Right Angle 'L' Bracket Base

Black Oxide Hardware to match Robo Arm and wheelchair and prevent Corrosion

Kit Includes:

Top Row From Left to Right

2 OfS1060.p: Black Hex Drive Button Head Steel Screw 1/4-20 x 3/4''
2 OfS1061.p: Black Hex Drive Socket Head Steel Screw 1/4-20 x 1/2''
2 MtT0728.p: 1/4-20 x 3/4 Permobil Compatible T-Bolt 10x10mm head for 3rd Arm Base Ball
2 OfS1436.p: Black Hex Drive Button Head Steel Screw 1/4-20 x 1/2"

Bottom Row from Left to Right

2 OfS0440.p: Black Hex Drive Socket Head Steel Screw 1/4-20 x 1-1/2''
2 MtT1058.p: ¼-20 Black Flanged Locknut
2 MtT1056.p: ¼-20 T-Slot Nut for 3/8in Wheelchair Slide Track
2 OfS1422.p: ¼" External Tooth Lock Washer - Zinc-plated
1 OfS1434.p: ¼" Zinc Finish Internal/External Tooth Lock Washer

or 1 OfS1443.p: 3/8" Zinc Finish External Tooth Lock Washer

2 OfS0319.p: ¼" Flat Washer - Zinc-plated Steel

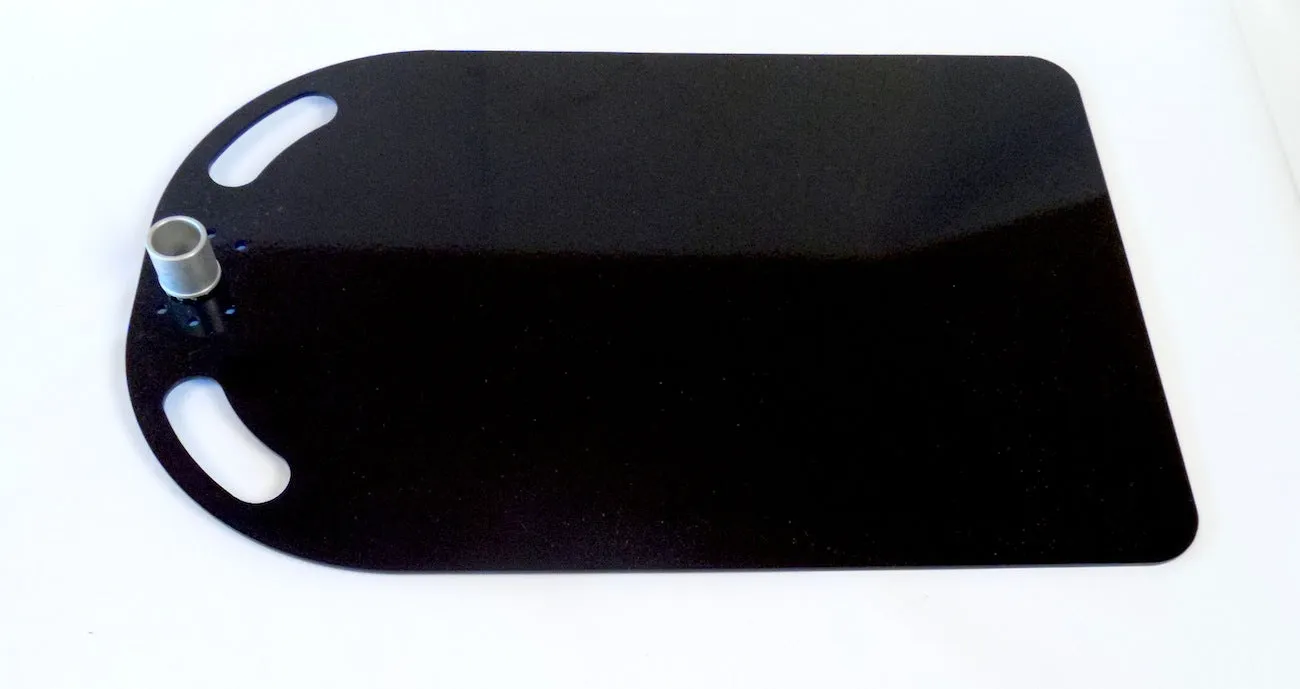

8. Robo Arm Bed Mattress Base

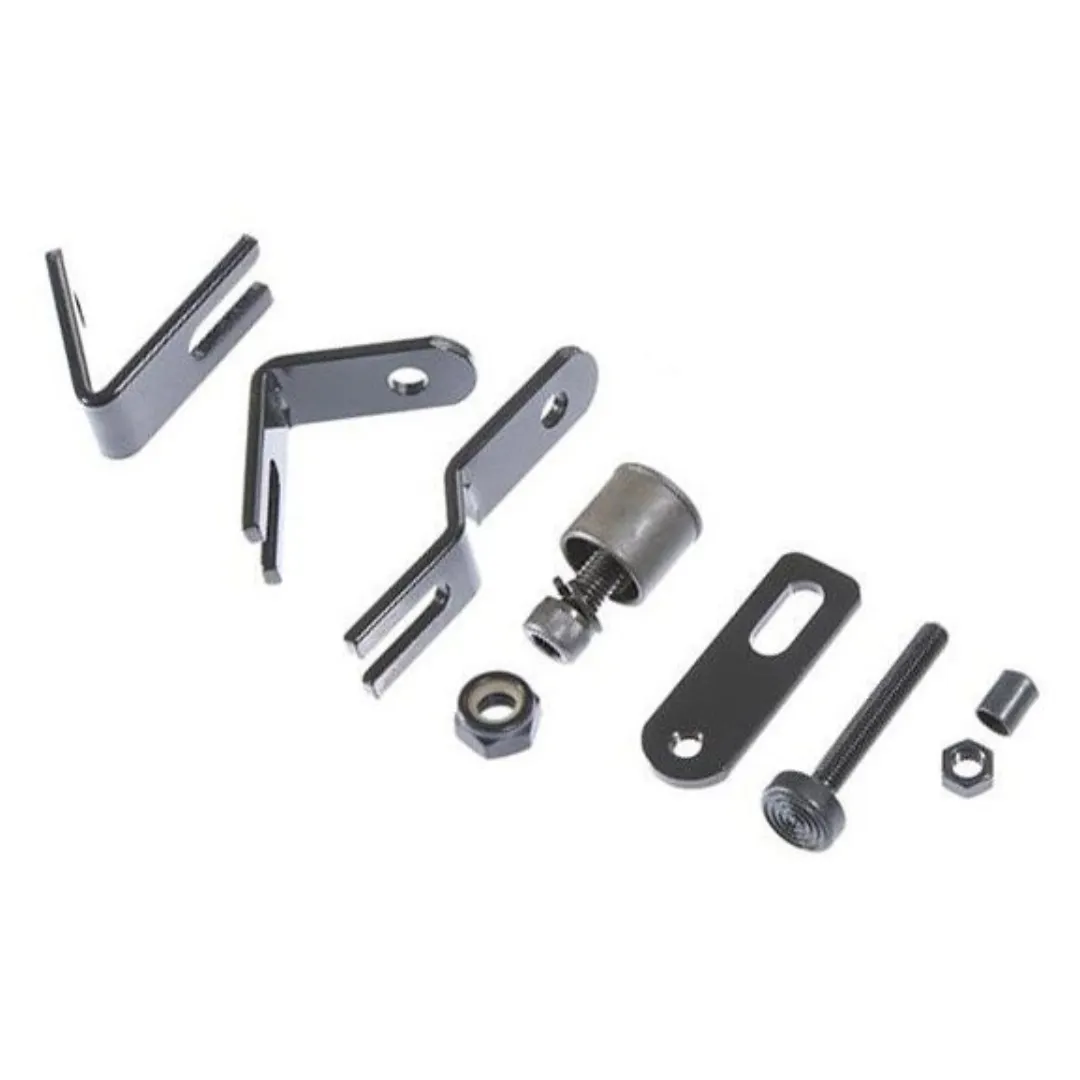

9. Robo Arm 6 Piece Base Bracket Kit

Attach Robo Arm to bed frame, metal wheelchair seat pan, wall, your wheelchair accessible van, or any other custom mounting

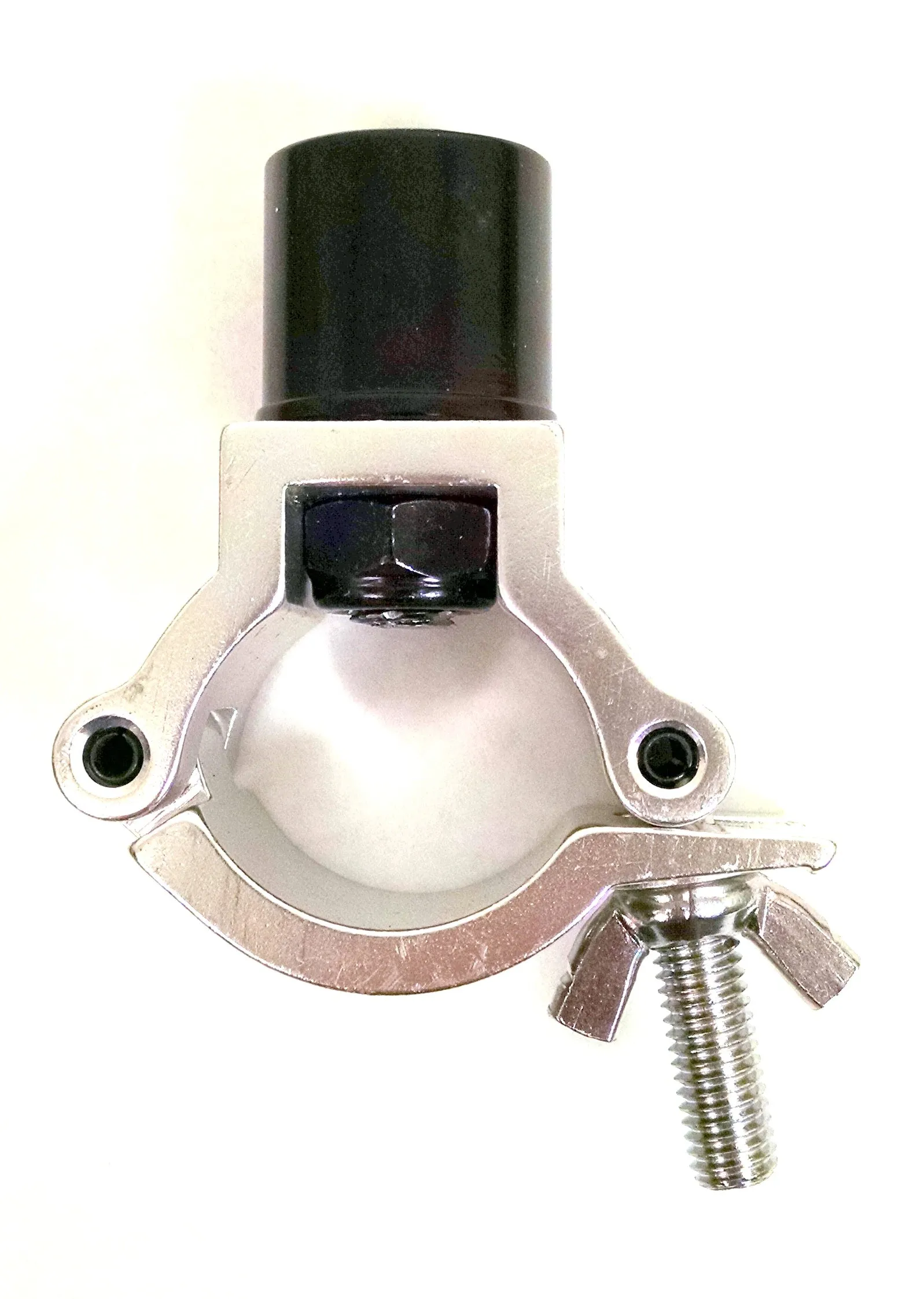

10. Robo Arm 1.2-1.5 inch Chrome Tubing Clamp Base for Manual Wheelchair or Bed Side Rails

Perfect on the shin, knee, or thigh section of manual wheelchair tubing frames and on bed side rails including Pro-Bed Freedom Bed side rails that oscillate slightly as the bed rotates

Bundle Includes

(1) MtT0478.p Compact Tubing Clamp 1/2''-1.4'' (13-35mm)
(1)

11. Robo Arm 1'' Cylindrical Base

Robo Arm slides over this part which is a component of all of the Robo arm bases including:

MtR1050.a - Robo Arm Bed Mattress Base
MtR0239.p - Robo Arm L-Bracket Base - bolts to Wheelchair Seat or Bed Frame
MtM1153.x - Robo Arm 1.2-1.5 inch Chrome Tubing Clamp Base for Manual Wheelchair or Bed Side Rails
MtR0555.p - Robo Arm Surface Mount Base

12. Manual Camera Pan & Tilt Head with Quick Releases for Camera & Robo Arm, or 3rd Arm Ball Mount

A small three-way head for lightweight camera applications.

Head Type

3-Way pan/tilt

Maximum Camera Supported

35mm SLR with standard lens

Load Capacity

Not specified by manufacturer

Height

4.13inches (105mm)

Quick Release

Spirit Level
